Grove All Terrain Cranes

GMK3060 clearcut

GMK3060: The smallest, roadable, versatile 60t all-terrain crane.

GMK4080 clearcut

GMK4080: Compact 80t crane with superior strength.

GMK4090 clearcut

GMK4090

GMK4100L 1 clearcut

GMK4100-L is the most popular new model for NZ industry.

GMK5150L clearcut

GMK5150-L;150t that delivers a true return on investment

GMK5180 1 clearcut

GMK5180-1; 180t Grove All-Terrain Crane

GMK5200 1 clearcut

GMK 5200-L, 200t crane features 30% less diesel consumption on driveline.

GMK5250L clearcut

GMK5250-L; The most powerful and versatile five-axle crane on the market!

GMK6300 clearcut

GMK6300 features a large lifting capacity with a versatile, compact design.

GMK6400 clearcut

GMK6400 Grove All-Terrain Crane

GMK7450 clearcut

GMK 7450, 450t max capacity on a seven-axle carrier with 60m boom!

Proven performers in NZ conditions, Grove All Terrain Cranes deliver powerful lifting performance, superior off-road mobility and great road speeds. Combine these benefits with the lower crane running costs, industry-leading reliability and TRT’s NZ wide service and support, you won't be disappointed in your investment.

Grove all-terrain cranes are manufactured to the highest quality standards by Manitowoc under ISO9001 quality standards. Grove crane technology is constantly developing to optimise reliability and durability through continuous improvement. Features of the Grove all terrain cranes include:

  • Exclusive MEGAFORM boom design
  • Exclusive MEGATRAK suspension system
  • Manitowoc Crane Control System
  • Tier 4i Mercedes diesel engine
  • Manitowoc Crane Care from TRT
  • MAXBase – get the best out of your crane in tight spaces

 > Download All Terrain Crane Features and Benefits Brochure

GMK 3050 3

GMK3050-3

  • Capacity:50 t
  • Main boom: 10.2 m – 40.0 m
  • Maximum jib:8 m
  • Maximum tip height:51 m

The GMK3050-3 features a five-section 40 m TWIN-LOCK hydraulic pinned main boom and an extra 8 m swing away jib. The CCS operating system with jog dial for efficient and comfortable operation and the boom configurator mode offering always the best boom configuration and utilization.

GMK 3060 2

GMK3060-2

  • Capacity: 60 t
  • Main boom: 10.2 m – 40.0 m
  • Maximum jib: 8.7/15 m
  • Maximum tip height: 51.0 m

The Grove GMK3060-2 combines both simplicity and strength: The all-terrain taxi crane is quick and flexible to deploy and can carry 7.5 t of counterweight within 12 t per axle. Due to its compact design and easy setup the GMK3060-2 gets all jobs done in the shortest time even on confined job sites.

GMK 3060L 1

GMK3060L - 1

  • Capacity: 60 t
  • Main boom: 48.0 m
  • Max jib: 9.55 m – 48.0 m
  • Max tip height: 65 m

The Grove GMK3060L-1 all-terrain crane combines a powerful seven-section MEGAFORM® boom with a compact three-axle carrier making it ideal for a variety of work in tight locations. It is the most compact crane in the 60 t class: In addition to the shortest overall length and the lowest height, it also scores top marks for the smallest tail swing.

GMK4070L Gallery

GMK4070L

  • Capacity:70t
  • Main boom: 60m
  • Maximum jib: 8,7 - 15m
  • Maximum tip height: 77m

The GMK4070L offers with 60m the longest boom while also being the lightest crane in its class. Within 10t per axle the crane can carry 5,2t of counterweight and within 12t per axle 13,3t which leads to an unmatched flexibility in transportation. In addition to that the GMK4070L dominates with unmatched lifting capacities with full and partial counterweight configurations.

GMK 4080 3

GMK4080 - 3

  • Capacity: 80 t
  • Main boom: 11.0 m – 51.0 m
  • Maximum jib: 21.0 m
  • Maximum tip height: 75.0 m

The GMK4080-3 offers outstanding load charts and is outfitted with 10,2 t taxi counterweight on 12 t/axle. The remaining counterweight needed to reach full capacity fits on one standard trailer.

GMK 4090 1

GMK4090 - 1

  • Capacity: 90 t
  • Main boom: 11.0 m – 51.0 m
  • Max jib: 8.7 m – 21.0m
  • Max tip height: 75.0 m

The GMK4090-1 offers outstanding load charts and is outfitted with 10,2 t taxi counterweight on 12 t/axle. The remaining counterweight needed to reach full capacity fits on one standard trailer.

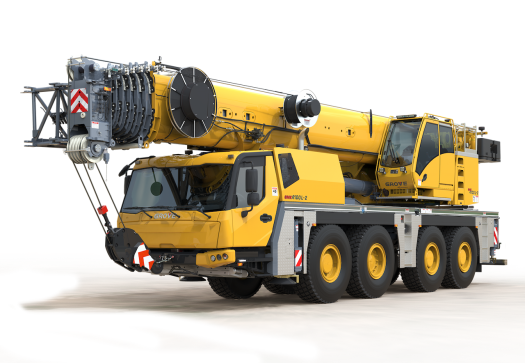

GMK 4100L 2

GMK4100L - 2

  • Capacity: 100 t
  • Main boom: 11.4 m – 60.0 m
  • Max jib: 11.0 m – 25.6 m
  • Max tip height: 89.0 m

The Grove GMK4100L-2 combines compact design with superior strength. It offers impressive load charts and compact dimensions with a narrow width of 2.55 m. In the taxi configuration with 6.8 t on board, it offers the best load charts in its class. The remaining counterweight needed to reach full capacity fits on just one standard trailer. The latest EUROMOT 5 engine technology reduces fuel consumption and allows the use of 100% HVO fuel. The new driver's cab scores with the best comfort and ergonomics for the crane driver.

GMK 5120L

GMK5120L

  • Capacity: 120t
  • Main boom: 66m
  • Maximum jib: 9,7 - 16m
  • Maximum tip height: 90m

The GMK5120L boosts the versatility of taxi cranes to new levels. The 120 t machine offers an exceptional 66 m main boom and can easily carry a class-leading amount of counterweight – no matter if counterweight configurations for 10 t, 12 t, or 16.5 t per axle are required. This results in great flexibility and low transportation costs.

GMK5150L 1

GMK5150L - 1

  • Capacity: 150 t
  • Main boom: 60 m
  • Max jib: 33.8 m
  • Max tip height: 96.0 m

The GMK5150L-1 delivers great ROI due to outstanding lifting capacities and great jobsite accessibility. Impressive lifting jobsite maneuverability and fuel efficiency help you achieve greater profits.

GMK5150XL

GMK5150XL

  • Capacity: 150 t
  • Max boom length: 68.7 m
  • Max jib: 9.6m to 24.2m
  • Max tip height: 99.0 m

The Grove GMK5150XL all-terrain crane is redefining the five-axle, 150 t class by offering almost 69 m of main boom. The crane’s taxi charts are outstanding, ensuring easy roadability and transport savings.

GMK5180 1

GMK5180 - 1

  • Capacity: 180 t
  • Main boom: 13.7 m – 64.0 m
  • Max jib: 34.0 m
  • Max tip height: 101.0 m

The GMK5180-1 is the most powerful crane in its class with a 64  m main boom. The - optional - VIAB turbo coupling enables wear-free starting and braking. Grove's single-engine concept meets the latest emission standards while lowering running costs with 30% less diesel consumption than older models. The simple logistics due to the exchangeable, self-rigging auxiliary hoist and the exchangeable counterweights are outstanding.

GMK5200 1

GMK5200 - 1

  • Capacity: 200 t
  • Main boom: 13.7 m – 64.0 m
  • Max jib: 34.0 m
  • Max tip height: 101.0 m

The GMK5200-1 is the most powerful crane in its class with a 64 m main boom. The - optional - VIAB turbo coupling enables wear-free starting and braking. Grove's single-engine concept meets the latest emission standards while lowering running costs with 30% less diesel consumption than older models. The simple logistics due to the exchangeable, self-rigging auxiliary hoist and the exchangeable counterweights are outstanding.

GMK5250L 1

GMK5250L -1

  • Capacity: 250 t
  • Main boom: 13.3 m – 70.0 m
  • Max jib: 37.0 m
  • Maxi tip height: 110.0 m

The most powerful and versatile five-axle crane in the market, the GMK5250L-1 lets you dominate the competition with performance capabilities that include the highest-rated capacity best load chart in its class best maneuverability quickest set-up time, and most operator comfort and convenience in its class.

GMK5250XL 1

GMK5250XL - 1

  • Capacity:250 t
  • Main boom:13.4 m – 78.5 m
  • Maximum jib: 11.2 m - 33.8 m
  • Maximum tip height: 109.0 m

With the longest boom and high capacities combined with a small footprint and excellent maneuverability, the GMK5250XL-1 pushes boundaries. The Grove single-engine design with the latest emission levels reduces the operating costs due to 30% lower diesel consumption compared to previous-generation models.

GMK6300L 1

GMK6300L - 1

  • Capacity:300 t
  • Main boom:15.6 m – 80.0 m
  • Maximum jib:37.0 m
  • Maximum tip height:120.0 m

The Grove GMK6300L-1 is the definition of a 300 t mobile crane. It continues the success story of the GMK6300L and offers even better-lifting capacities, especially on the long boom. The driveline with the Mercedes engine and Allison fully automatic transmission is reliable and powerful. The GMK6300L-1 can not only be moved on the road with up to 21 t counterweight.

GMK6400 1

GMK6400 - 1

  • Capacity: 400 t
  • Main boom: 15.4 m – 60.0 m
  • Maximum jib: 79.0 m
  • Max tip height: 136.0 m

The GMK6400-1 is the strongest heavy-duty 6 axle crane on the market with a self-rigging MegaWingLift™ (rigging time < 20 min). Able to take on jobs that would usually require a seven- or eight-axle model, this outstanding 400 t all-terrain crane features an improved hydraulic system with faster flow to provide quicker operating speeds and even smoother movements. As an upgrade to the GMK6400, its implementation of Manitowoc’s CCS ensures that performance is optimized and operation can be boosted to a whole new level. Furthermore, with the addition of MAXbase variable outrigger positioning, capacities on the main boom are increased.

GMK7450

GMK7450

  • Capacity: 450 t
  • Main boom: 16.0 m – 60.0 m
  • Max jib: 12 m - 79.0m
  • Max tip height:136.0 m

The GMK7450 offers a 450t maximum capacity on a seven-axle carrier with a 60m Twin-Lock boom. The optional Mega-Wing-Lift attachment increases capacity throughout the working range. The fully automatic ALLISON transmission, combined with MEGATRAK™ independent suspension system, ensures optimal performance both on and off-road.

GMK3050 3 Product Guide

> pdf (3.8 MB)

GMK3060 2 Product Guide

> pdf (4.2 MB)

GMK3060L 1 Product Guide

> pdf (3.9 MB)

GMK4070L Product Guide

> pdf (3.7 MB)

GMK4080 3 Product Guide

> pdf (4.5 MB)

GMK4090 1 Product Guide

> pdf (4.7 MB)

GMK4100L 2 Product Guide

> pdf (5 MB)

GMK5120L Product Guide

> pdf (4.4 MB)

GMK5150L 1 Product Guide

> pdf (6.4 MB)

GMK5150XL Product Guide

> pdf (6.3 MB)

GMK5180 1 Product Guide

> pdf (3.4 MB)

GMK5200 Product Guide

> pdf (3.4 MB)

GMK5250L 1 Product Guide

> pdf (4.3 MB)

GMK5250XL 1 Product Guide

> pdf (5 MB)

GMK6300L 1 Product Guide

> pdf (4.8 MB)

GMK6400 1 Product Guide

> pdf (8.7 MB)

GMK7450 Product Guide

> pdf (2.3 MB)
GMK4100-L

GMK4100-L

GMK5150-L Preventative Maintenance

GMK5150-L Preventative Maintenance


For more information call 07 849 4839 or get in contact using the link below!
