5 Rows of 8 (5x8)

5x8 Swing Wing Widening Low Loader clear cut

5x8 Swing Wing Widening Low Loader clear cut

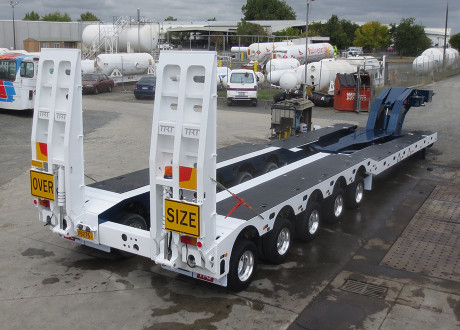

5x8 Swing Wing Widening Low Loader with Drop Well clear cut

5x8 Swing Wing Widening Low Loader with Drop Well

Deep Coaming rail less deflection

Swing Wing Widening

Up to 60t Payload (NZ)

Add a 2x8 dolly to increase your payloads. Our in-house design and engineering team work with you to achieve the best solution for your operation. All of our trailers come with TRT's standard quality features and finishes to ensure that your trailer is returning its investment for the long haul.

We have a range of 5x8 low loader options to suit your payloads and operating environment:

  • Swing wing widening
  • Swing wing with drop well

TRT are able to manufacture to your required deck length to suit varied plant and equipment. View the drawings and specifications for each model below. If you're not sure which trailer is best for your operation, use our Trailer Selector tool or get in touch with one of our team.

Ask us about how our Clip-On Module can increase your payloads and returns!

1 TRT 5x8 Swing Wing Widening Low Loader

Swing Wing Widening

  • Widens: 2.5m closed to 4.2m open.
  • Payload: 70t with 2x8 dolly.
  • Length: 13.8m deck length.
  • Axles: BPW 17.5 - large brake lining, fitted backing plates, long service life.

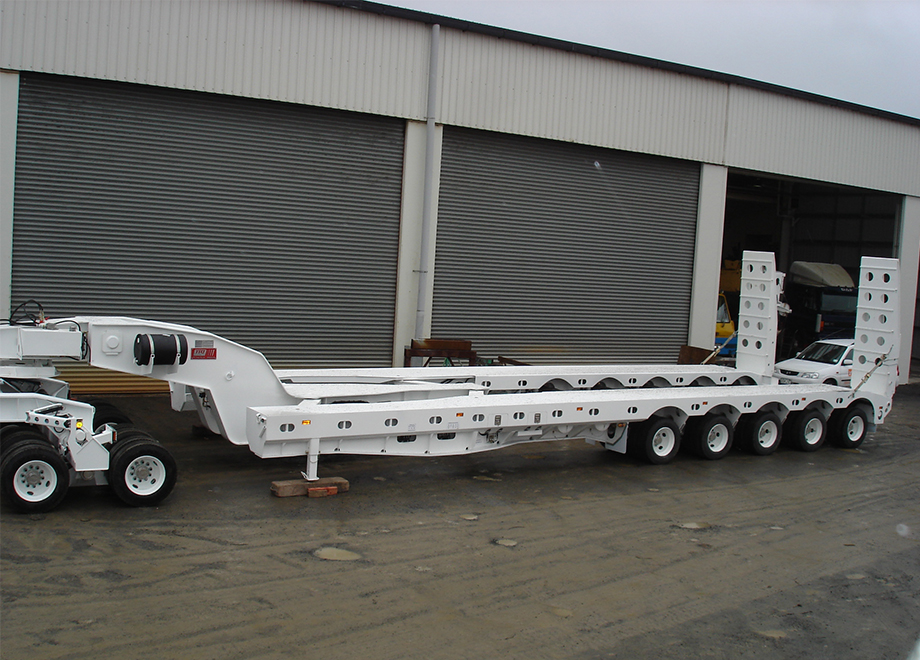

This design under some state rules can carry increased payload. With larger machines loaded, stability is assured with double acting hydraulic suspension. The hydraulic compensating gooseneck can be lifted or lowered to suit the payload and terrain, whilst maintaining the suspension travel required to keep all axles on the road supporting the load.

1 Widens to 4.25m

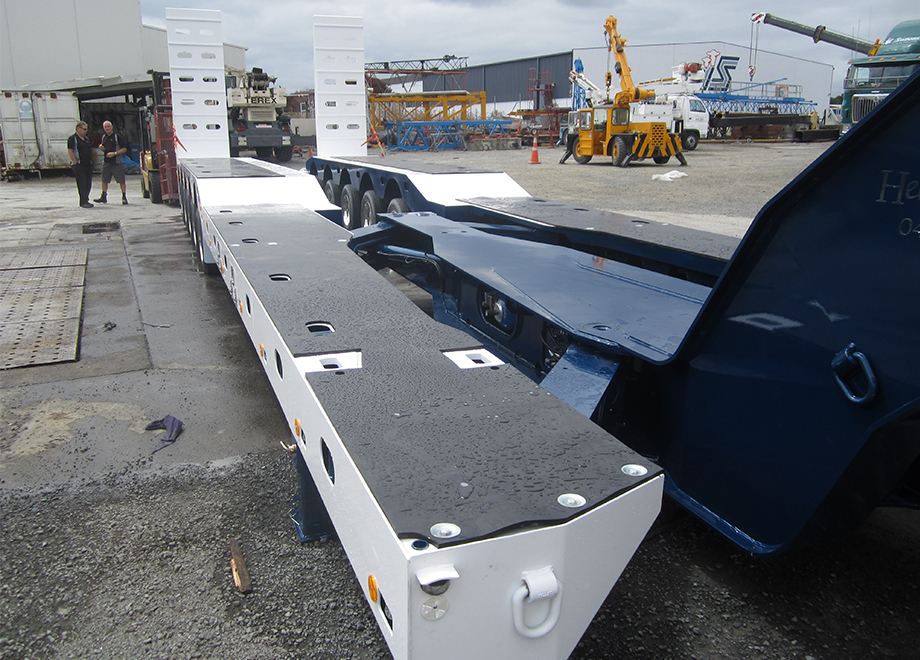

Swing Wing with Drop Well

  • Widens: 2.5m closed to 4.2m open.
  • Drop Well: Up to 225mm.
  • Gooseneck: Hydraulic compensating gooseneck.

With the drop well design, operators are able to lower the overall height of their loads to meet state rules. With no spine operators get further height benefit by lowering their excavator arm down below the deck height. Trailer lowers on the ground for stability when loading heavy machines. Accumulators soften the ride on rough terrain with less fatigue to trailer, truck and driver.

Drawing 5x8 Swing Wing Widen

> pdf (708 KB)

Spec 5x8 Swing Wing Widen Drop Well

> pdf (140 KB)

Drawing 5x8 Swing Wing Widen Drop Well

> pdf (1.4 MB)

Spec 5x8 Swing Wing Widen

> pdf (140 KB)

For advice about the best 5x8 low loader options, give Glen a call on 07 849 4839 for more information or a quote.
