Grove Rough Terrain Cranes

Grove Real Tough!

Grove rough-terrain cranes are designed to handle the toughest site conditions. The performance, productivity and operator comfort allow your operators to work effectively for longer, with less fatigue. Combine these features with our reliability, easy maintenance, and quality features and you’ll agree that Grove rough-terrain cranes are the right choice for your business.

  • Exclusive MEGAFORM boom design
  • Exclusive MEGATRAK suspension system
  • Manitowoc Crane Control System™ in most models
  • Tier 4i Mercedes diesel engine
  • Manitowoc Crane Care™ by TRT

Note: The Crane Control System™ offers a user-friendly interface, two full graphic displays mounted vertically for better visibility and a jog dial for easier data input.

GRT655

GRT655

  • Capacity: 51 t
  • Main Boom Length: 10.6 m – 34.8 m
  • Maximum jib: 7.92 m - 13.7 m
  • Maximum tip height: 51.8 m

The Grove GRT655 rough terrain crane comes with a strong 34,8 m (114.3 ft) four-section, full power boom and it leads the pack with outstanding features typically only found on larger cranes: hydraulically tilting cab, Manitowoc's Crane Control System (CCS) with ECO mode and class-leading chart capacities make this crane a job site winner.

GRT655L

GRT655L

  • Capacity: 51 t
  • Main Boom Length: 10.8 m – 43.0 m
  • Maximum jib: 7.92 m - 13.7 m
  • Maximum tip height: 59.7 m

The Grove GRT655L rough terrain crane comes with a strong 43 m (141.2 ft) five-section, full power boom providing the reach of cranes typically found in the 65 t (70 USt) classes. It also leads the pack with outstanding features typically only found on larger cranes: hydraulically tilting cab, Manitowoc's Crane Control System (CCS) with ECO mode and class-leading chart capacities make this crane a job site winner.

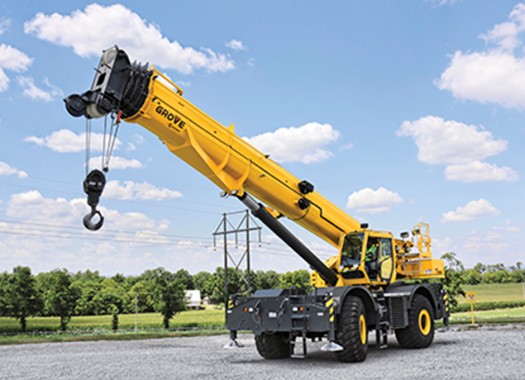

Grove GRT8100 1 Cab Outriggers CC 940x680 v2

GRT8100 - 1

  • Capacity: 100 t
  • Main boom: 12 m - 47 m
  • Maximum jib: 10 m - 17 m
  • Maximum tip height: 72.9 m

The versatile and powerful GRT8100-1 takes Grove’s 100 t rough-terrain crane to the next level. The crane integrates the wide cab and carrier of the GRT8120 with the superstructure of the GRT8100 to bring you improved operation, easier serviceability, and added jobsite flexibility with the MAXbase outrigger system.

GRT8120 Grove Rough Terrain Crane image 940x680 v2

GRT8120

  • Capacity: 120 t
  • Main boom: 11.3 m - 60 m
  • Maximum jib: 10.5 m - 17.6 m
  • Maximum tip height: 80.8 m

The GRT8120 offers class-leading lifting performance with a 11.3 m to 60 m (37.2 ft to 197 ft) seven-section, MEGAFORM™ boom with TWIN-LOCK™ boom pinning system. This amount of main boom length is typically reserved for rough terrain cranes in the 135 t - 150 t (150 USt -165 USt) class, however when combined with a compact carrier with dimensions of cranes in the 70 t- 90 t (80 USt- 100 USt) class, makes the GRT8120 a truly versatile crane that should be in every crane owners fleet.

GRT880

GRT880

  • Capacity: 80 t
  • Main boom: 12.6 m - 41.1 m
  • Maximum jib: 10.1 m - 17.1 m
  • Maximum tip height: 61.9 m



The GRT880 comes with a 12,5 m to 41 m (41 ft to 134.5 ft) four-section, full-power boom that provides unmatched lifting performance in its class. This combined with a strong permissible line pull, powerful hoists, Cummins QSB6.7L engine with ECO mode, load sensing hydraulic system and Manitowoc’s Crane Control System (CCS) ensure that the GRT880 will deliver unmatched efficiency on the job site.

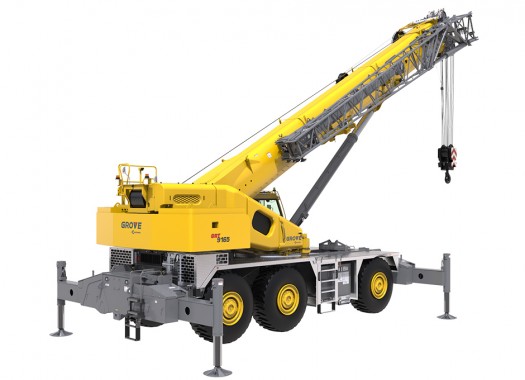

GRT9165

GRT9165

  • Capacity: 150 t
  • Main boom: 13.7 m - 62.5 m
  • Maximum jib: 11.2 m -17.8 m
  • Maximum tip height: 91.1 m

The GRT9165 was designed after gathering feedback from crane owners and operators to ensure that it is loaded with the features and reliability you demand. With a class leading 62,5 m (205 ft) main boom, new wider full vision cab, intuitive Crane Control System (CCS), reduced transport height and best in class load charts the GRT9165 will be a valuable asset in any crane owners’ fleet.

RT530E 2

RT530E - 2

  • Capacity: 30 t
  • Main boom: 8.8 m - 29.0 m
  • Maximum jib: 7.9 m - 13.7 m
  • Maximum tip height: 45 m

The RT530E-2 offers the class leading lifting performance in the 30t (30 USt) class and better accessibility and transportability to jobsites thanks to shorter overall length, narrow width and lower height. This model features a 29 m (95 ft) full power boom and it comes equipped with the Crane Control System (CCS) and ECO mode to ensure smooth operation and lower operational costs. A new load sensing hydraulic system maximizes the cranes efficiency by utilizing piston pumps for crane functions.

RT540E

RT540E

  • Capacity: 35 t
  • Main boom: 31 m
  • Maximum jib: 7.9 m - 13.7 m
  • Maximum tip height: 47 m

The RT540E provides optimal lifting capacity in a compact package and longer reach than the RT530E-2 thanks to the 31 m (102 ft) full power boom. Great accessibility and transportability to jobsites thanks to narrow width and lower height. This model comes with the Crane Control System (CCS) and ECO mode to ensure smooth operation and lower operational costs.

RT550E

RT550E

  • Capacity: 45 t
  • Main boom: 39 m
  • Maximum jib: 8.0 m
  • Maximum tip height: 49 m

The RT550E rough terrain crane offers the highest capacity and the longest boom in the 45 t (50 USt) class. Its compact size allows for easy transportability between jobsites and makes it best suited for congested work areas and everywhere there is need for long reach in a very compact footprint. This crane also features Manitowoc's Crane Control System (CCS) and Boom Configurator Mode for easy and efficient operation of the boom. The load sensing hydraulic system design, coupled with ECO mode, ensures reduced fuel consumption and emissions.

RT765E 2

RT765E - 2

  • Capacity: 60 t
  • Main boom: 33.5 m
  • Maximum jib: 10.1 m - 17.1 m
  • Maximum tip height: 65.2 m

The RT765E-2 provides strong lifting performance, along with quick and intuitive operation thanks to the 33,5 m (110 ft) four-section, full power MEGAFORM™ boom. The full vision cab ensures maximum visibility and operator comfort, while higher permissible line pull and faster line speed than competitive cranes allow for less rigging, higher efficiency and productivity on the jobsite.

RT770E

RT770E

  • Capacity: 65 t
  • Main boom: 10.1 m - 17.1 m
  • Maximum jib: 42 m
  • Maximum tip height: 67.3 m

The RT770E shares a common design platform with the RT765E-2 model, while providing higher nominal capacity and additional reach thanks to the 42 m (138 ft) five-section, full power MEGAFORM™ boom. The full vision cab ensures maximum visibility and operator comfort, while higher permissible line pull and faster line speed than competitive cranes allow for less rigging, higher efficiency and productivity on the jobsite.

RT9130E 2

RT9130E - 2

  • Capacity: 120 t
  • Main boom: 48.8 m
  • Maximum jib: 11.0 m - 18.0 m
  • Maximum tip height: 85 m

The RT9130E-2 comes with a 12,8 m to 48,8 m (42 ft to 160 ft) five-section, full power boom that provides quick and powerful lifting performance. This combined with a strong permissible line pull, Cummins engine, Full Vision cab as well as removable and self-rigging outrigger boxes and counterweights ensure that the RT9130E-2 will deliver unmatched efficiency and productivity on the jobsite.

GRT655 Product Guide

> pdf (4.8 MB)

GRT655L Product Guide

> pdf (4.8 MB)

GRT8100 1 Product Guide

> pdf (4.1 MB)

GRT8120 Product Guide

> pdf (4.1 MB)

GRT880 Product Guide

> pdf (3.2 MB)

GRT9165 Product Guide

> pdf (2.1 MB)

RT530E 2 Product Guide

> pdf (1.9 MB)

RT540E Product Guide

> pdf (1.9 MB)

RT550E Product Guide

> pdf (1.8 MB)

RT765E 2 Product Guide

> pdf (1.3 MB)

RT770E Product Guide

> pdf (1.9 MB)

RT9130E 2 Product Guide

> pdf (1.5 MB)
GRT8100 Features and Benefits

GRT8100 Features and Benefits

GRT9165

GRT9165


For more information call us on 07 849 4839 or get in contact below!
