CTI and TractionAir Parts
We offer field and technical service and product support 24/7.
We also have a full reconditioning service on G Series and E Series
- Pressure Cells
- Wheel End Rotors
- ECU (including GPS software upgrades)
We have a pressure cell service exchange options, see more information below.
Traction Air has a range of parts available for repair on all CTI units, no matter the brand.
For a copy of the Traction Air G Series installation manual, you can download it here.
Note: If you have an early TractionAir system we have cost-effective key component upgrade kits so you can have the latest technology without replacing the system.
If you would like to look at replacing your current CTI system or upgrading to the latest E-Series please contact us.

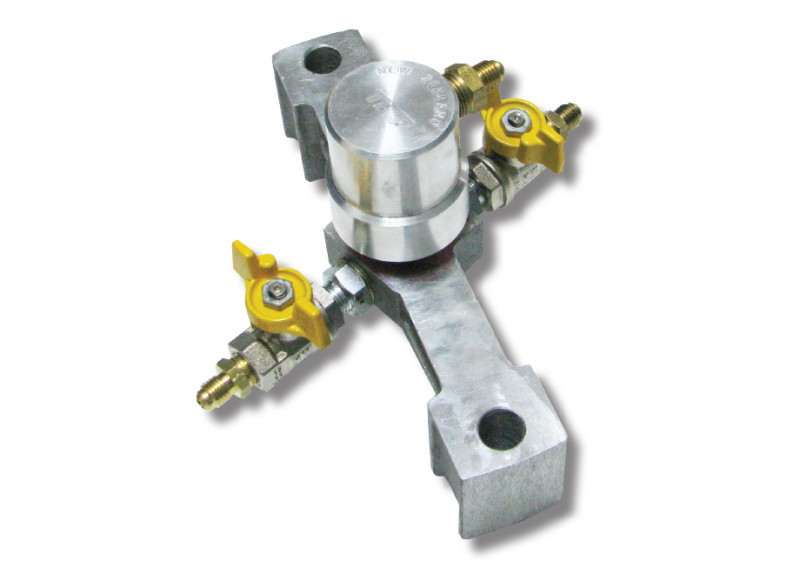

Conventional Rotator
Product Code: TADCCC
Shown on a Rockwell Axle Bridge Assembly.
Rotator Hub Reduction Heavy Duty
Product code: TADCHRHD
Shown on a Scania Hub Reduction Axle Bridge Assembly.
Early Version Hub Reduction Rotator
Product Code: TADCEL
Now superseded by the TADCHRHD.
Shown on a Scania Hub Reduction Axle Bridge Assembly.
Low Profile Rotator
Product code: TADCHR
For use in front wheel and low profile clearance applications.

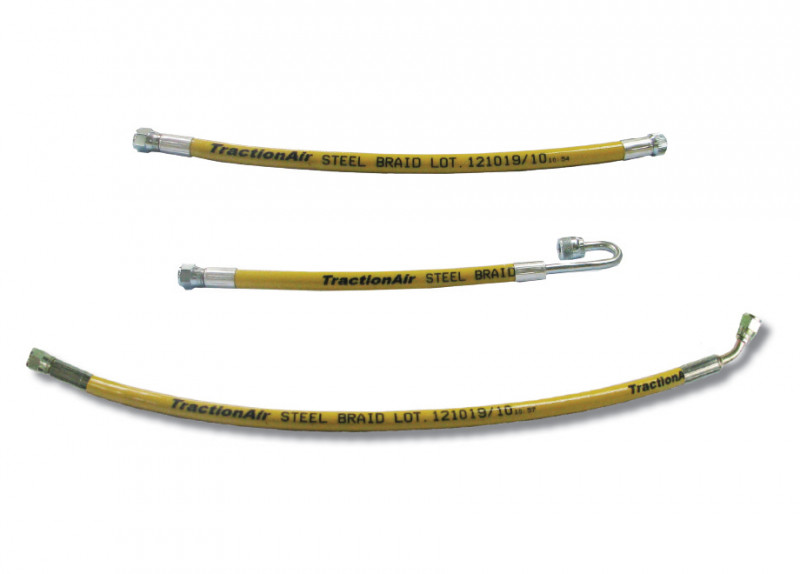

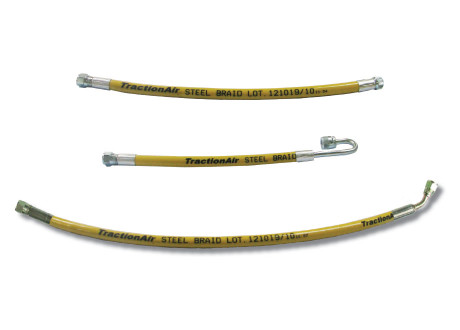

Inner Wheel Hose
A = Overall length
From the inner wheel valve stem to rotators - Traction Airhose with straight valve stem hose tail.
Outer Wheel Hose
B = Overall length
From the inner wheel valve stem to rotator - Traction Air hose with 180° U bend valve stem hose tail.
External Feed Hose
C = Overall length
From the tee between the wheels to wheel rotators - Traction Air with a straight and 45° hose tail.
Bridges are supplied based on the make and model of your vehicle, please notify us before ordering.

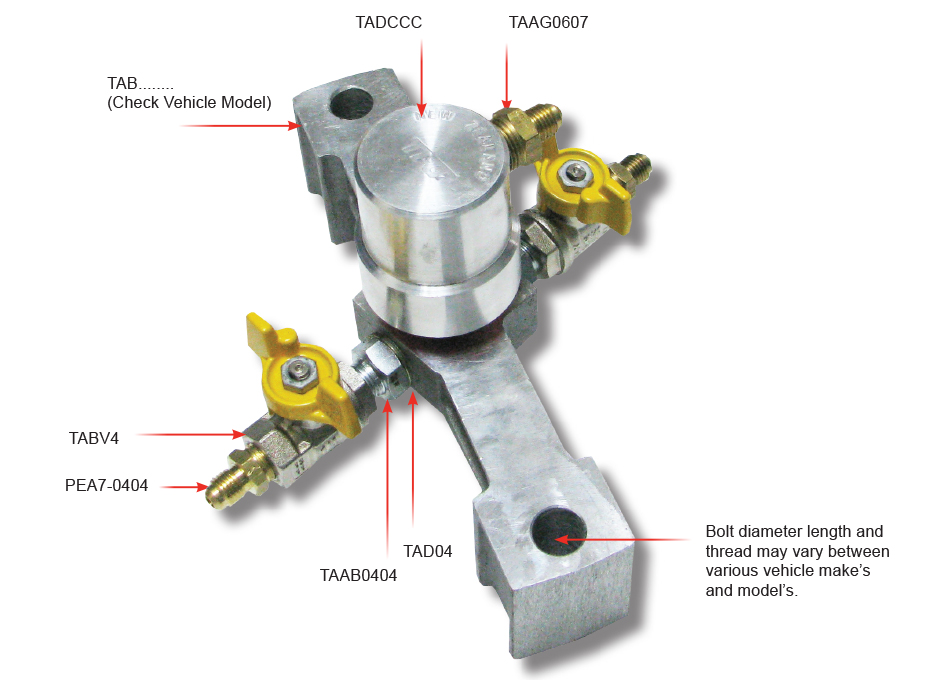

Conventional Rotor Bridge Assembly
- Rockwell
- Fuso
- Nissan
- Isuzu
- Hino

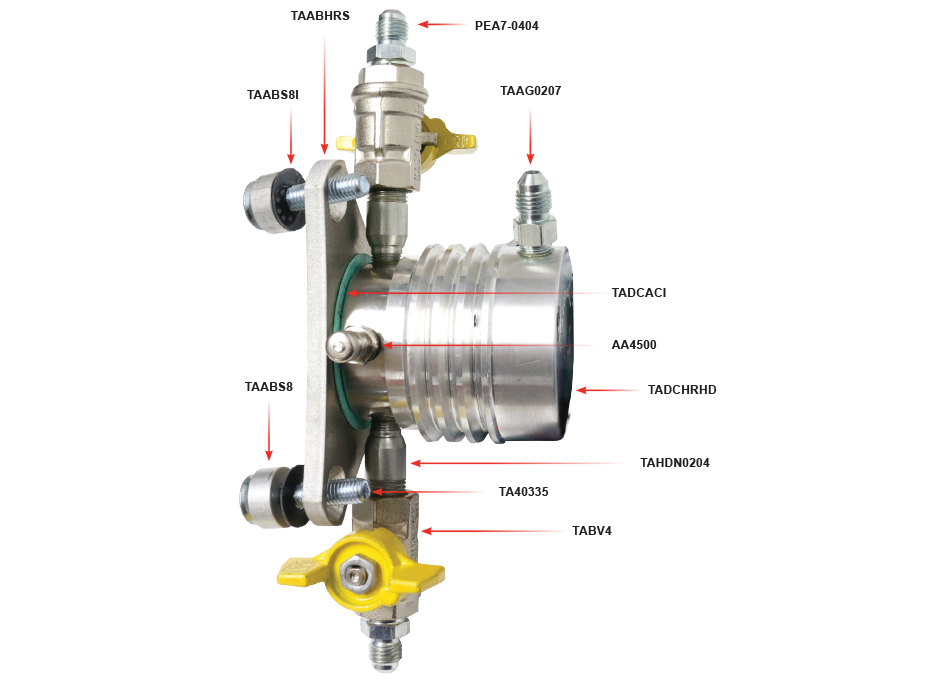

Heavy Duty Rotor Bridge Assembly
We stock all makes and models including:
- Mercedes-Benz
- Scania
- Hubreduction
Pressure Protection Valve
Product code: TAPR2-90
This valve protects the integrity of the vehicle's brake system and must be installed vertically with the white plastic "knob" facing up.
Tee Mounting Block
90° Tee - shown fully assembled
Tee Mounting Block
45° Tee - shown fully assembled

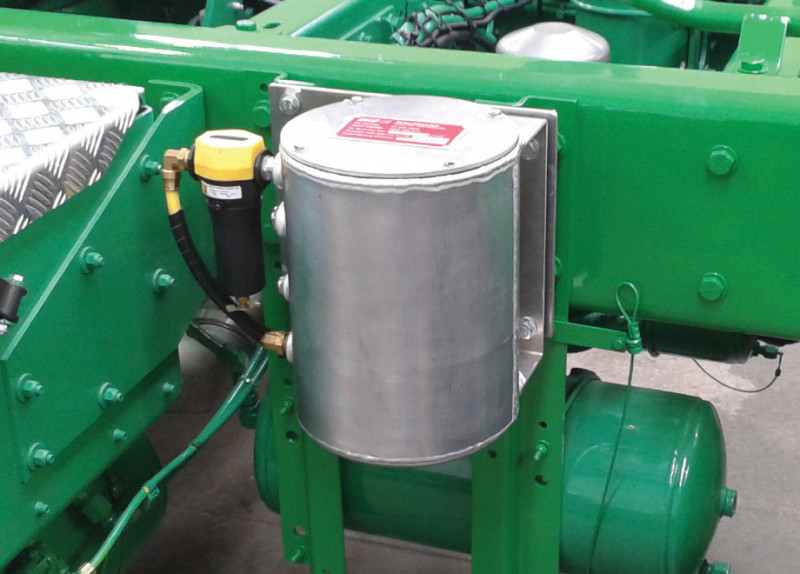

We offer a pressure cell exchange service.
Send us your damaged unit and we will send you a new pressure cell unit. We will recondition the unit you send and we will only charge for the cost of the repair NOT the cost of the new unit. This is a great backup support option.
We do not recommend purchasing idividual compoents for a pressure cell except for;
- Filter element assembly
- Replacement filter element
Pressure Cell Configuration
 |
Replacement Filter ElementProduct Code: TAAFE Filter Element AssemblyProduct Code: TAAF8 |
To order parts or arrange a quote call Grant on 0274 777 383 or get in touch with us on the link below!
CTI Parts
To order parts or arrange a quote call Grant on 0274 777 383 or fill in the form below, tell us the application you have and we will be in touch with you shortly.
