4 Rows of 8 (4x8)

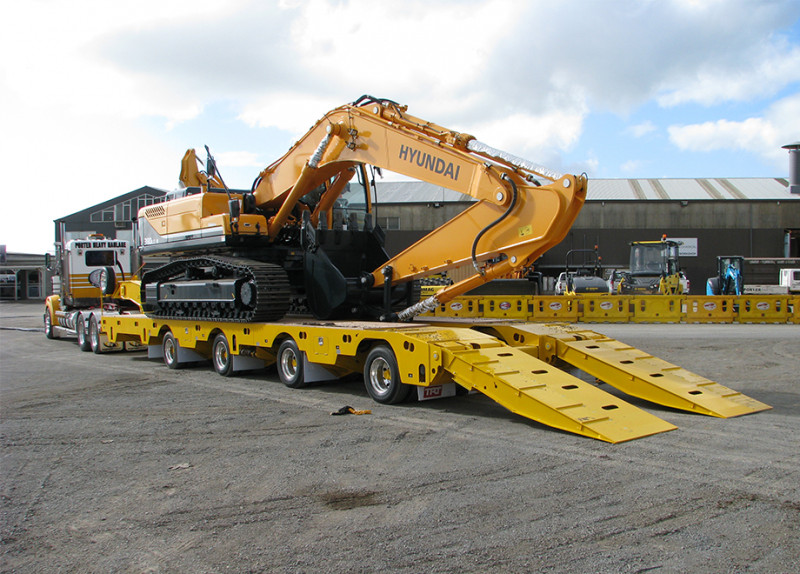

4x8 Box Beam Widening low loader with rear steer

4x8 Box Beam Widening low loader with rear steer

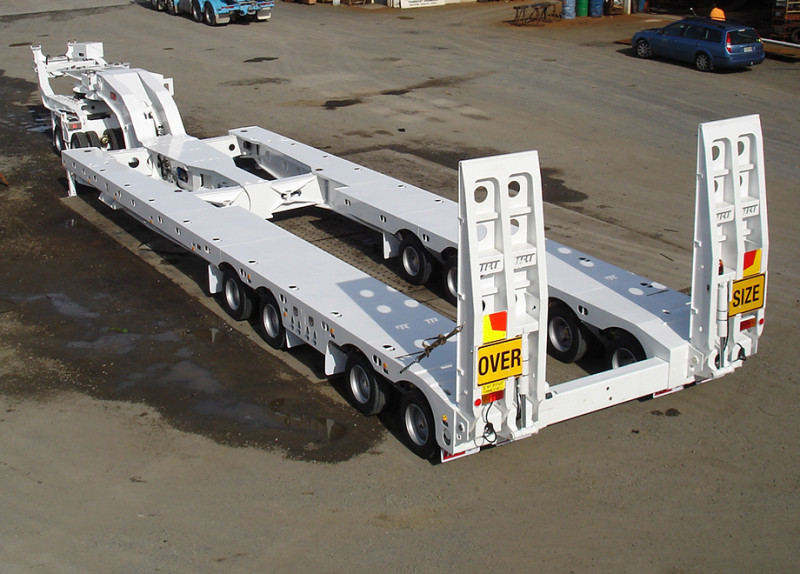

4x8 Swing Wing Widening Low Loader 4.2m wide clear cut

4x8 Swing Wing Widening Low Loader 4.2m wide clear cut

4x8 Swing Wing Widening Low Loader 4.6m wide

4x8 Swing Wing Widening Low Loader 4.6m wide

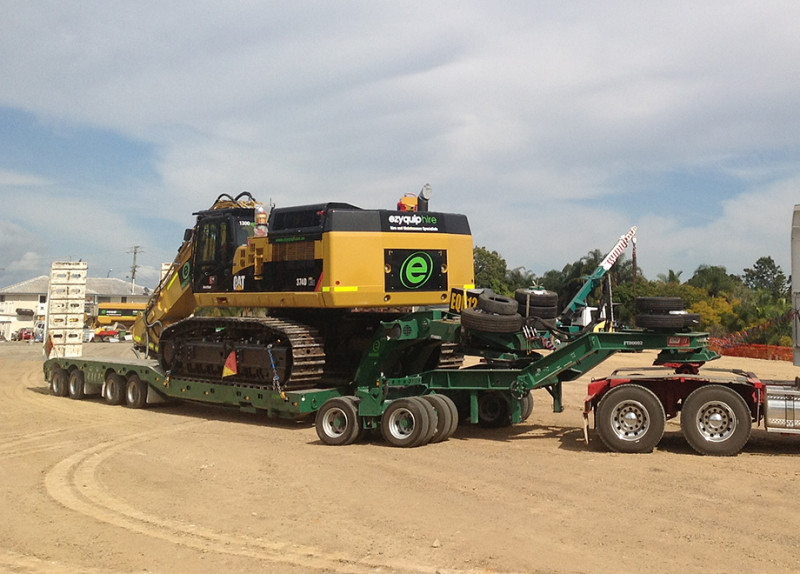

4x8 Swing Wing Widening Low Loader with Drop Well clear cut

4x8 Swing Wing Widening Low Loader with Drop Well clear cut

4x8 Swing Wing Widening Low Loader with rear steer

4x8 Swing Wing Widening Low Loader with rear steer

Up to 52t Payload (NZ)

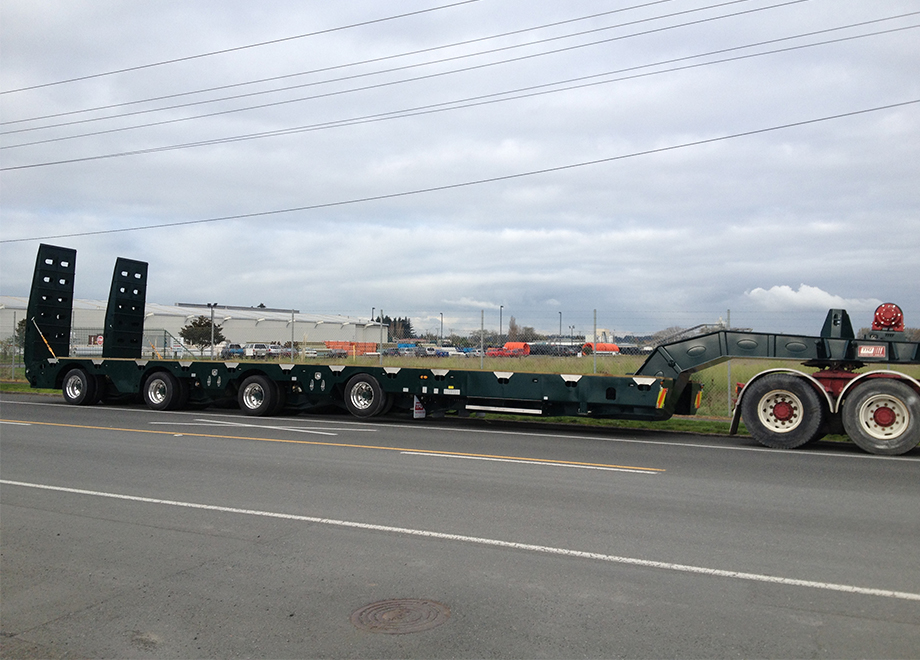

Increase payloads with a Dolly and extend with a Clip-On option.

Our in-house design and sales team work with you to achieve the best solution for your application. All of our trailers come with TRT's standard quality features and finishes to ensure that your trailer is returning its investment for the long haul.

We have a range of 4x8 low loader options to suit your payloads and operating environment:

  • Swing wing widening 4.2m
  • Swing wing widening with drop well
  • Swing wing  4.6m
  • Box beam widening with rear steer
  • Swing wing widening with rear steer

TRT are able to manufacture to your required deck length to suit varied machines. View the drawings and specifications for each model below. If you're not sure which trailer is best for your operation, use our Trailer Selector tool or get in touch with one of our team.

1 Low loader with dolly at work

Swing Wing 4.2m - AU

  • Widens: 2.5m closed to 4.2m open.

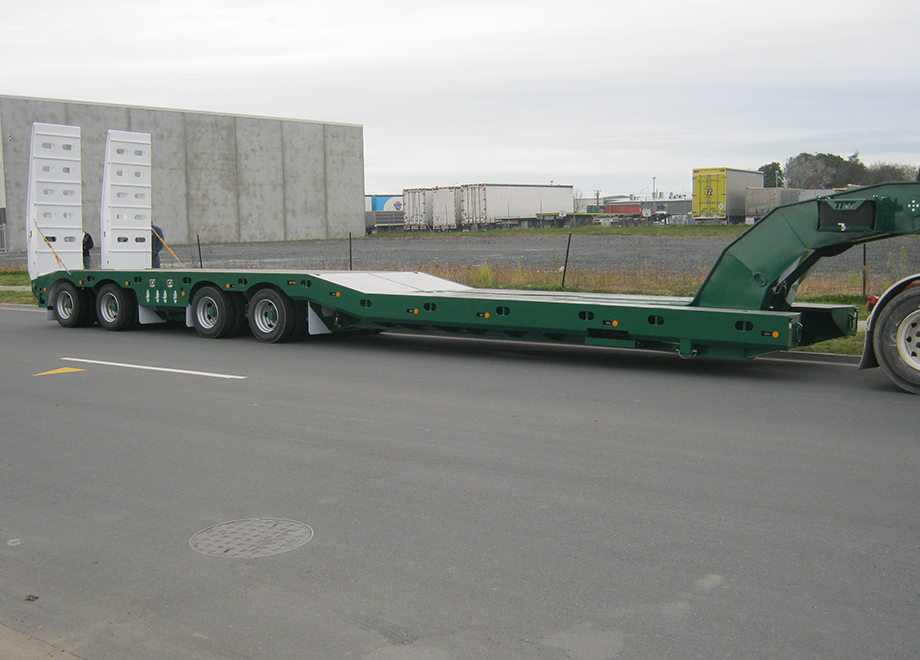

  • Length: 13.8m deck length.
  • Axle Lift: Axles can be lifted independently with double acting hydraulic suspension.

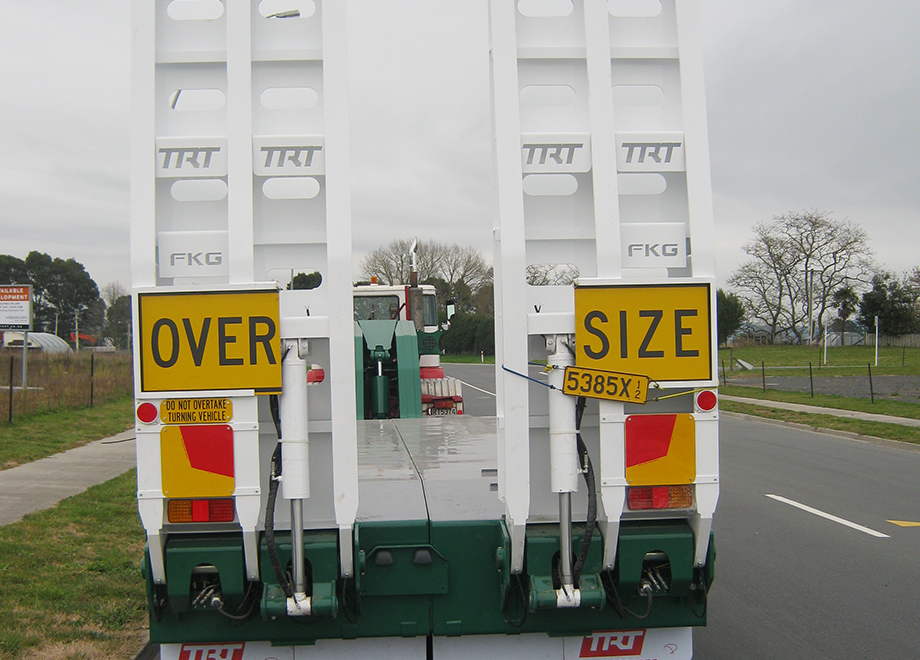

  • Ramps: Double fold available for lower loading angles.

Designed to carry 100t (in WA) this trailer has all of TRT's key features to make the operators life just that bit easier. With no locking positions, the trailer can be widened to any width up to 4.2m. Double acting hydraulic suspension provides increased stability when larger plant & machinery is loaded. Built with TRT's deep coaming rail & full depth chassis for a strong design with less deflection when fully loaded.

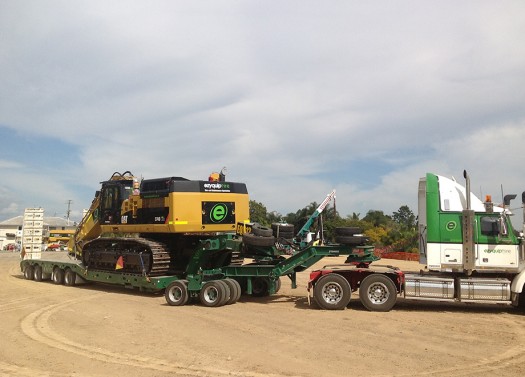

1 4 x 8 DROP-WELL AU

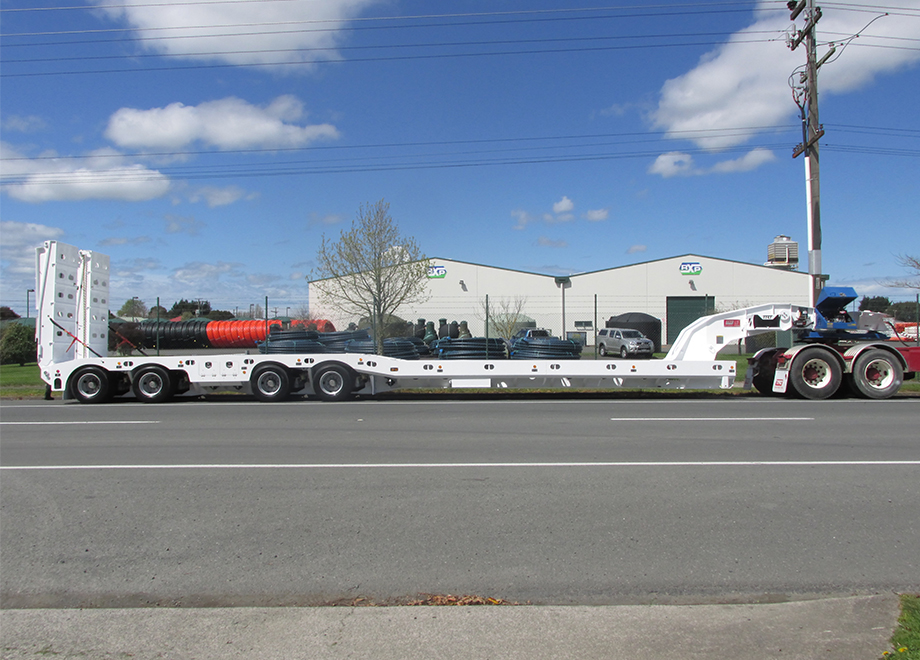

Swing Wing Widening with Drop Well - AU

  • Widens: 2.5m closed to 4.2m open

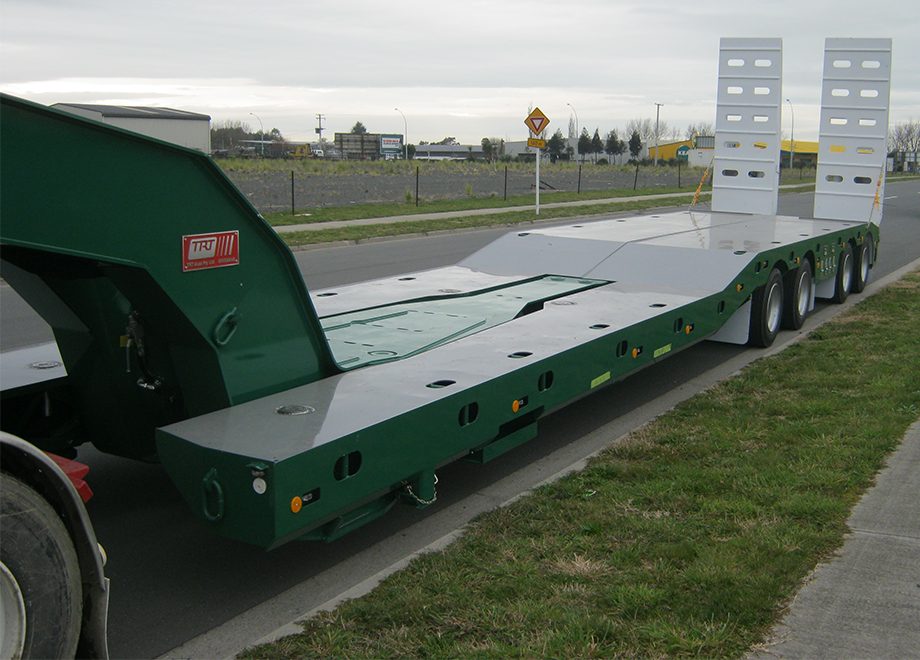

  • Drop Well: Up to 225mm deep.
  • Gooseneck: Hydraulic compensating gooseneck.
  • Brakes: Mounted directly to suspension to ensure braking throughout suspension travel.

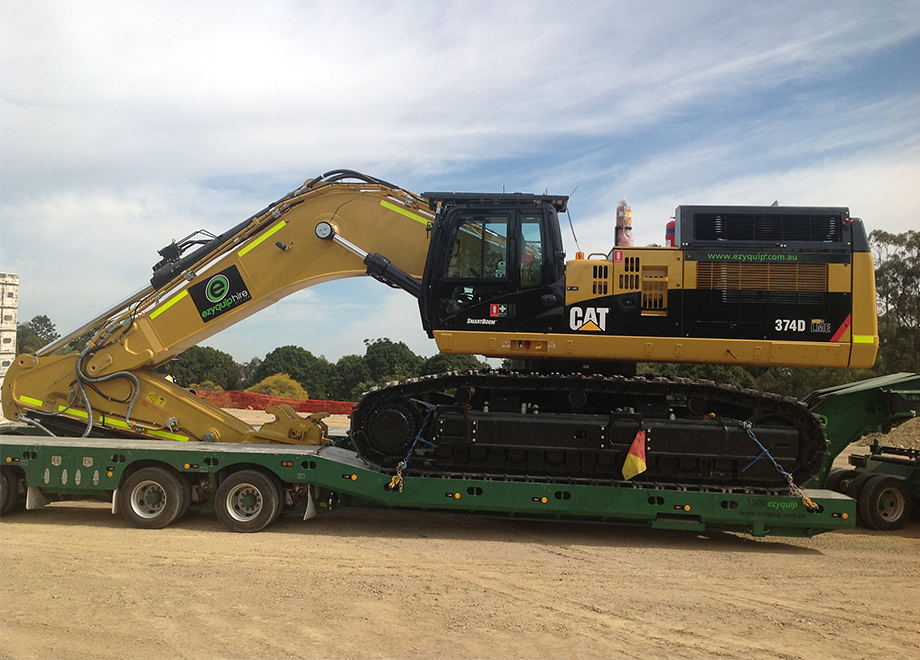

With the drop well design, operators are able to lower the overall height of their loads to meet state rules. With compensating gooseneck the trailer can be lifted or lowered to suit the payload and terrain, whilst maintaining the suspension travel required to keep all axles on the road to support the load.

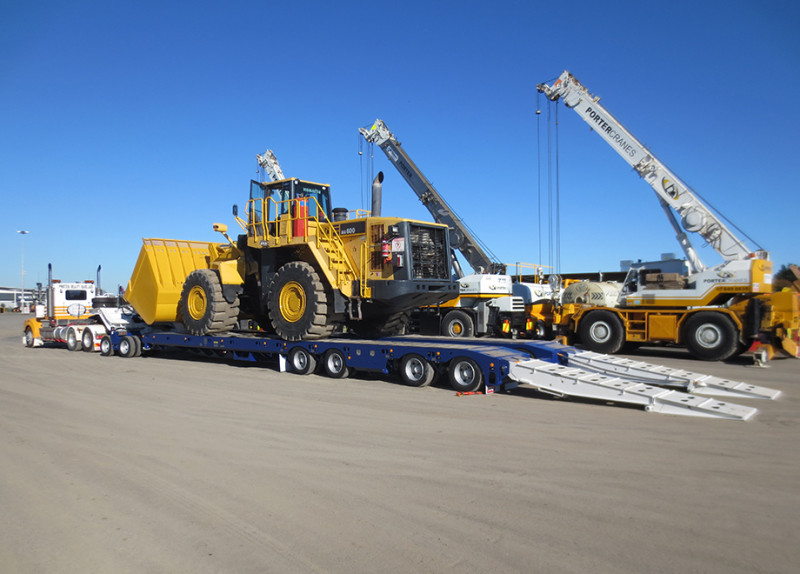

1 Widened to 4.6m

Swing Wing Widening 4.6m - AU

  • Widens: Opens to 4.6m for increased payload in some states.
  • Suspension: Accumulators soften ride with less fatigue to trailer and driver.
  • Widening: No deck locks, widens to any width.

This model widens to 4.6m allowing extra payload to be carried under certain state rules. Solid construction using high tensile steel and AR450 wear plate decking provides a strong trailer whilst minimising tare weight. Torsional design swing wing widening arms ensure a stiff trailer when widened & full loaded, no twisting. Ramps are offered in single or double fold for lowest loading angles.

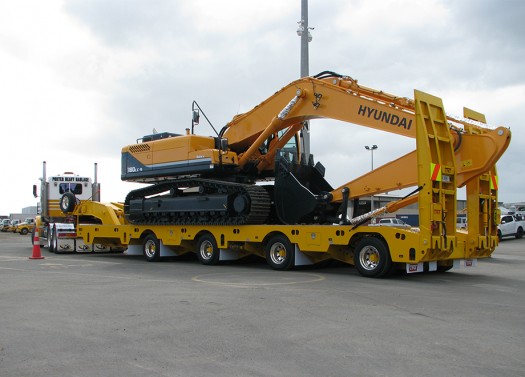

1 2.4m axles spacing for maximum loading

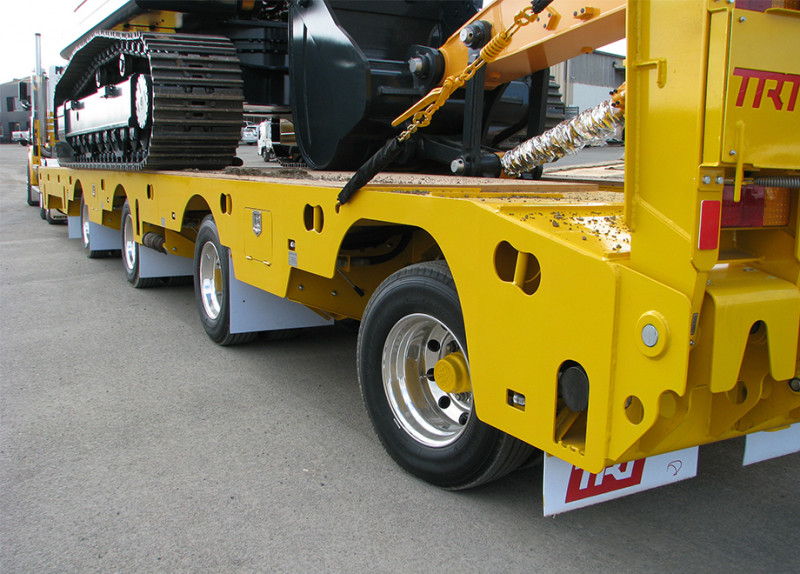

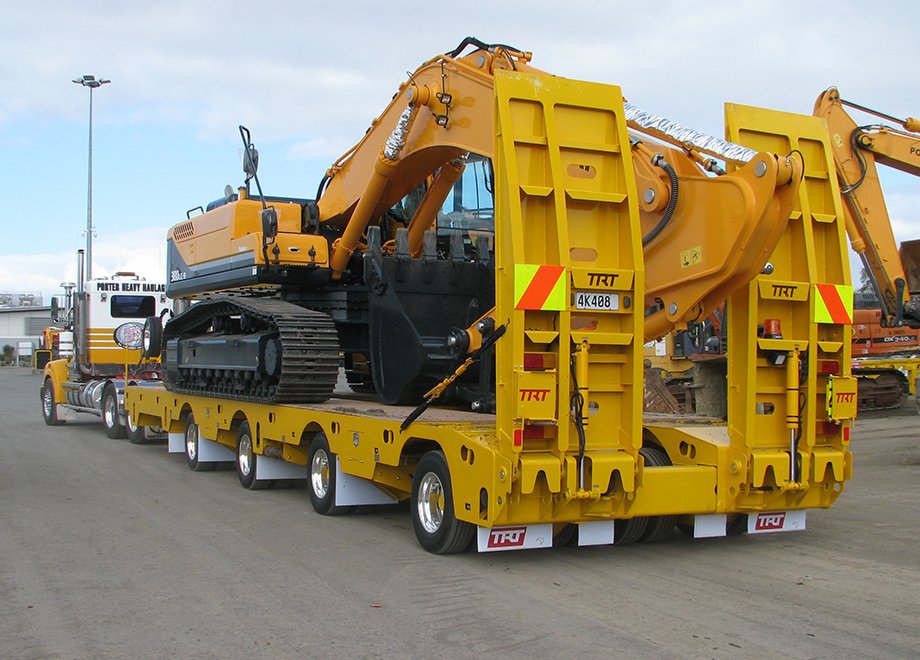

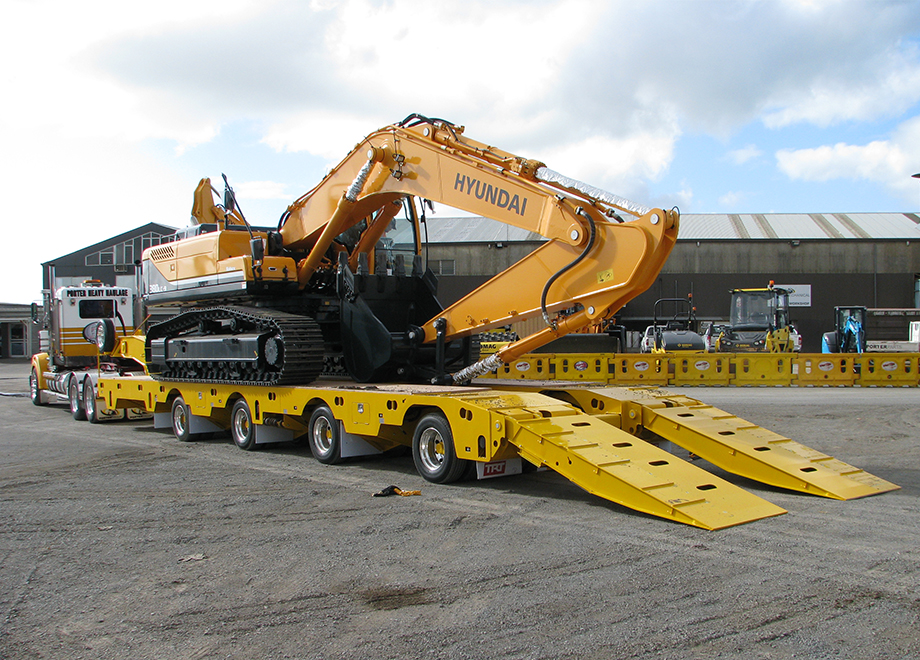

Box Beam Widening with Rear Steer

  • Widens: 3.05m closed to 4.2m open
  • Axle Lift: All axles are able to lift independently with hydraulic suspension

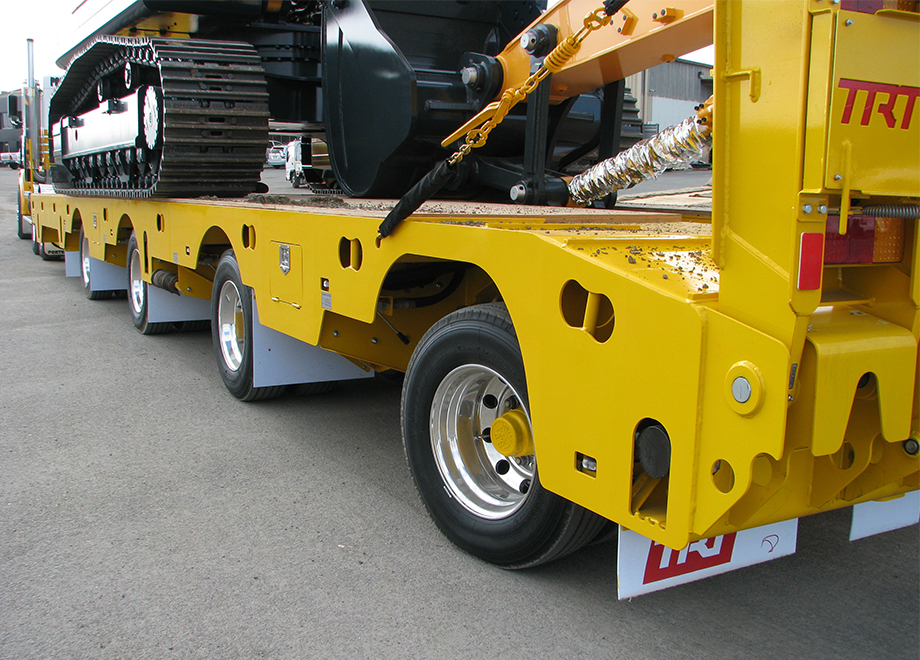

  • Steering: Less tyre wear, chassis stress and fuel burn.

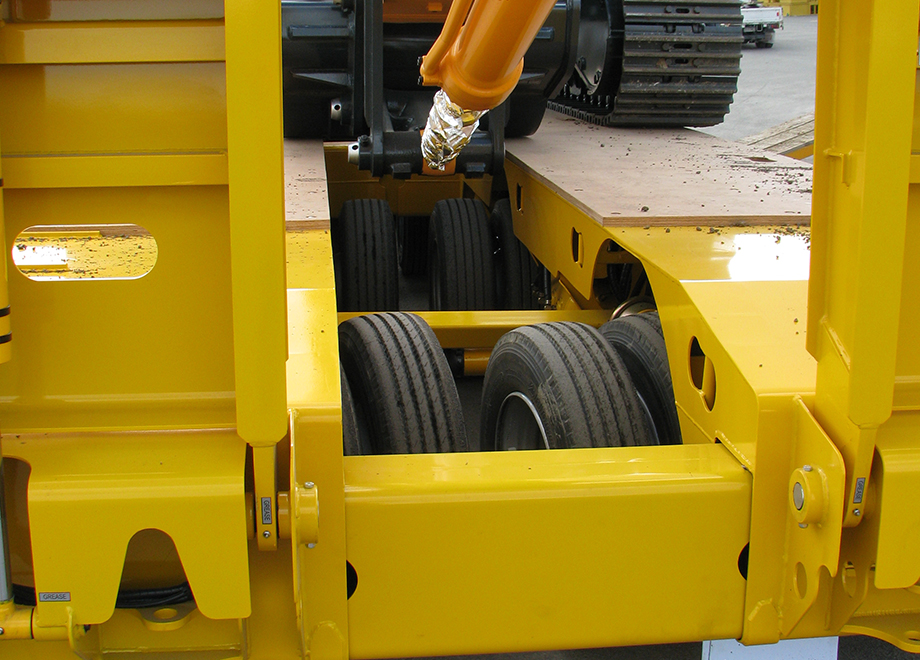

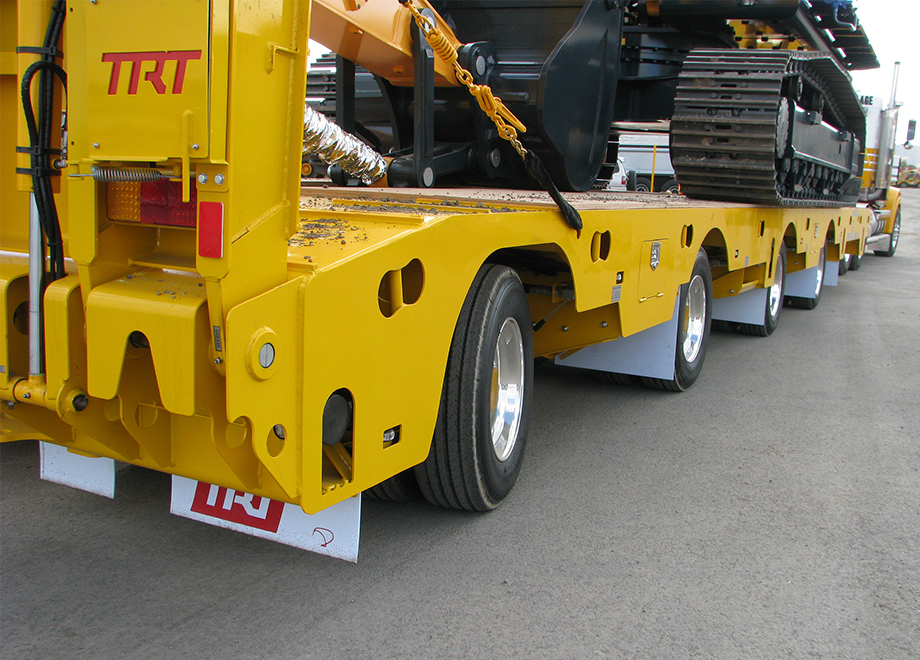

With 32 tyres on the ground, getting around corners without losing all your rubber becomes an issue. The rear steer axle or axles provide the extra manoeuvrability required and can be remote controlled to make the tighter areas even easier to get into. The open centre of the trailer allows for machinery to be lowered below the decks to travel at legal heights.

Spec 4x8 Swing Wing Widen Drop Well - AU

> pdf (140 KB)

Drawing 4x8 Box Beam Widen with rear steer - NZ

> pdf (796 KB)

Spec 4x8 Swing Wing Widening AU

> pdf (137 KB)

Drawing 4x8 Swing Wing Widen - AU

> pdf (854 KB)

Drawing 4x8 Swing Wing Widen Drop Well - AU

> pdf (756 KB)

Spec 4x8 Box Beam Widen with Rear Steer - NZ

> pdf (142 KB)

Spec 4x8 Swing Wing Widening 4.6m AU

> pdf (138 KB)

Drawing 4x8 Swing Wing Widen with Rear Steer - NZ

> pdf (806 KB)

Drawing 4x8 Swing Wing Widen - AU

> pdf (696 KB)

Spec 4x8 Swing Wing Widen with Rear Steer - NZ

> pdf (136 KB)

For advice about the best low loader options, give Glen a call on 07 849 4839 for more information or a quote.
